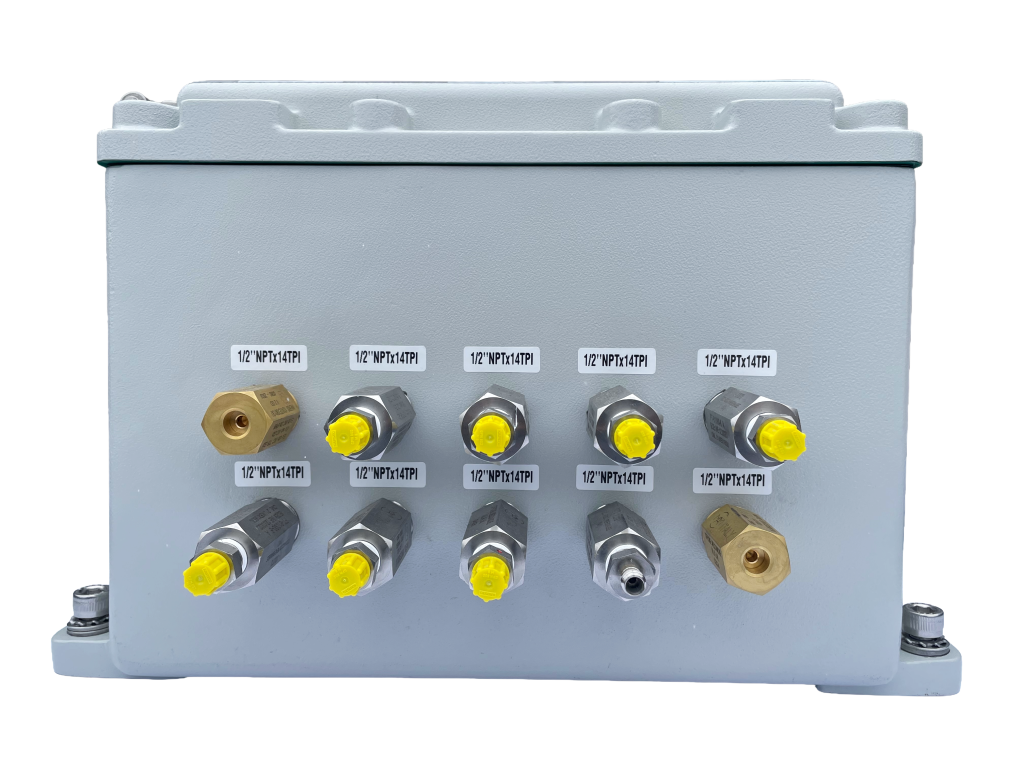

[Calgary, AB] — Meet the AccuChrome™ GC5, built on industry-leading miniaturization of a GC system. The GC5 provides significant reduction of gas consumption, ultra-fast analysis, and laboratory-level measurement. The GC5 supports a broad range of applications on a single analyzer using a single carrier gas, including:
- Custody transfer
- Natural gas quality monitoring
- Sulfur speciation, odorant monitoring and Total Sulfur analysis
- Biomethane and renewable natural gas (RNG) quality monitoring
By minimizing analytical chains and eliminating dead volumes, the GC5 reduces carrier gas consumption, accelerates analysis cycles, and enhances measurement precision, detection limits, and reproducibility. One-click operation delivers analysis in under two minutes†, reducing operator burden and specialist dependency. Built-in self verification reduces calibration and maintenance requirements to once per year, supporting reliable long-term field deployment. Designed for automated and remote operation, the GC5 integrates with control systems using Modbus protocols and web-based configuration software.
The GC5 architecture supports up to four independent analytical chains each with its own injector, column, and detector. Modular analytical cores enable faster deployment and reduced downtime, contributing to low mean time to repair (MTTR) in operational environments.
The AccuChrome GC5 delivers exceptional analytical performance with high repeatability and robust limits of detection with low carrier gas consumption using helium, hydrogen, or argon. Standard heating value calculations are compliant with ASTM D3588 (GPA 2172) and ISO 6976.
Multiple application specific measurement suites GC5 are made possible by combining two detector styles (μTCD and NGD). They include heating value for custody transfer and quality, heating value enhanced with either H₂S or mercaptan odorants monitoring, sulfur speciation and Total Sulfur, biogas quality, and trace siloxane and VOC monitoring, allowing operators to select a purpose-built solution aligned to their measurement requirements.
†analysis time will depend on the exact application. Standard heating value analysis is performed on pipeline quality natural gas in 2 minutes or less.
| MODEL | APPLICATIONS | MEASUREMENT CAPABILITY |
| BTU | Custody transfer Gas pipeline quality monitoring Gas processing |
C1 to C6 heating value analysis in 2 minutes with 50 ppm-mol LDL C1 to C10 heating value analysis in 7 minutes with 10 ppm-mol LDL Also measures nitrogen, oxygen and carbon dioxide. |
| BTU + H2S | Custody transfer Gas pipeline quality monitoring Gas processing |
C1 to C6 heating value analysis in 2 minutes with 50 ppm-mol LDL C1 to C10 heating value analysis in 7 minutes with 10 ppm-mol LDL Also measures nitrogen, oxygen and carbon dioxide. |
| BTU + Odorants | Custody transfer Gas pipeline quality monitoring Odorant stations |
Complete C1 to C6 heating value and odorant analysis in 2 minutes Measures common mercaptan odorants TBM, THT, IPM, NBM, and SBM with 2 ppm-mol LDL. Also measures nitrogen, oxygen and carbon dioxide. |
| SULFUR | Custody transfer Gas pipeline quality monitoring Gas processing Odorant stations Gas sweetening |
Sulfur compound speciation in gas streams, includes extended range of mercaptans. The most complete measure of total sulfur by GC available in a process analyzer. Measures hydrogen sulfide (H2S), carbonyl sulfide (COS), carbon disulfide (CS2), dimethyl sulfide (DMS), C1 to C4 mercaptans and more! |
| BIOGAS | Biogas processing Biomethane custody transfer Biomethane quality monitoring |
Heating value and quality measurement for biogas, biomethane and renewable natural gas (RNG) production in 2 minutes Dedicated speciation of nitrogen, oxygen, carbon dioxide and hydrogen sulfide (H2S as low as 3 ppm-mol). |
| SILOXANES + VOC | Biogas processing Biomethane custody transfer Biomethane quality monitoring |
The only purpose build GC for siloxanes and volatile organic carbons (VOCs) hazardous rated for operations. Complete analysis in less than 5 minutes. Siloxanes include TMS, L2, and D4 with 2 ppm-mol LDL VOCs include acetone, isopropyl alcohol (IPA) and butanone (MEK) with 5 ppm-mol LDL Supports compliance for CAN/BNQ 3672-100 (Canada), PG&E Gas Rule 21, and SoCalGas Rule 30. |
With the AccuChrome GC5, Galvanic Applied Sciences delivers measurement certainty through a compact, modular, and continuous online analyzer providing laboratory quality results directly from the field. Support regulatory compliance in a single analyzer platform for ASTM D7164 online heating value determination, EPA Renewable Fuel Standard, ASTM D7493 online measurement of sulfur compounds in natural gas, and ISO 19739:2004 sulfur compounds using gas chromatography. The GC5 also supports compliance with common transmission and utility tariff rules such as TC Energy gas quality specification, Enbridge gas quality specification, CAN/BNQ 3672-100 biomethane quality specifications, NYSEG Exhibit H (New York), PG&E Gas Rule 21 (California), and SoCalGas Rule 30 (California).
Learn more about the AccuChrome™ GC5 on our website, or see it up close by visiting booth #604 at the Canadian School of Hydrocarbon Measurement between March 17th-18th at the Calgary Telus Convention Center. You can also come see the AccuChrome™ GC5 at the Analyzer Tech Conference (ATC), April 13-17, and at the Western Gas Measurement Short Course, May 4-7.
